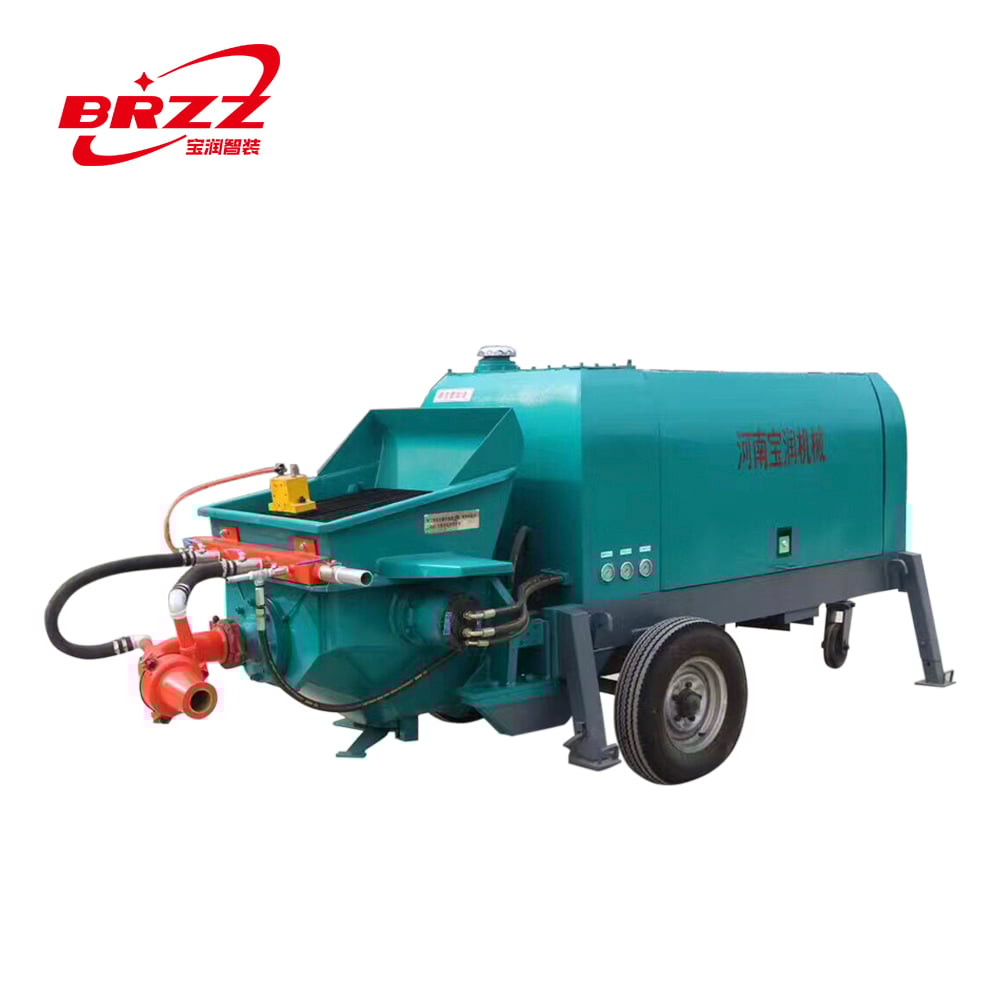

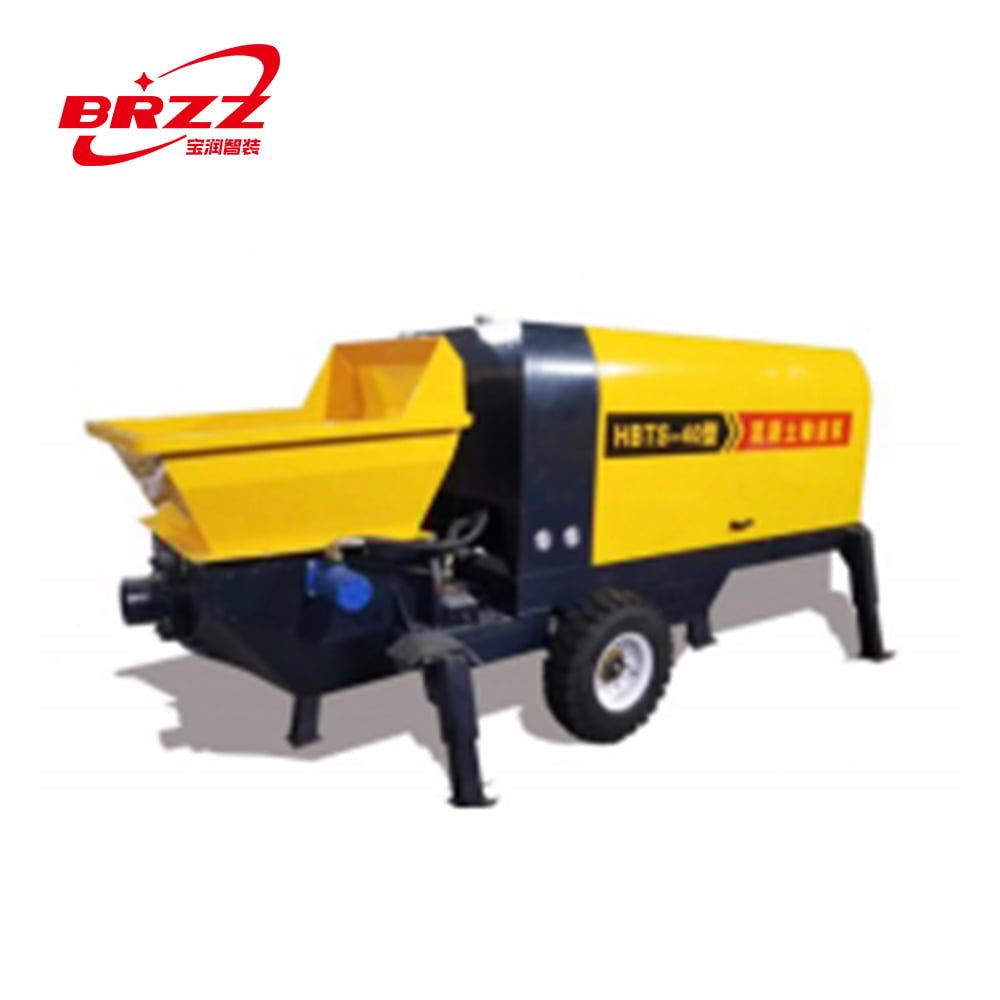

Trailer-mounted concrete pump
| Model | Parameter | Picture |

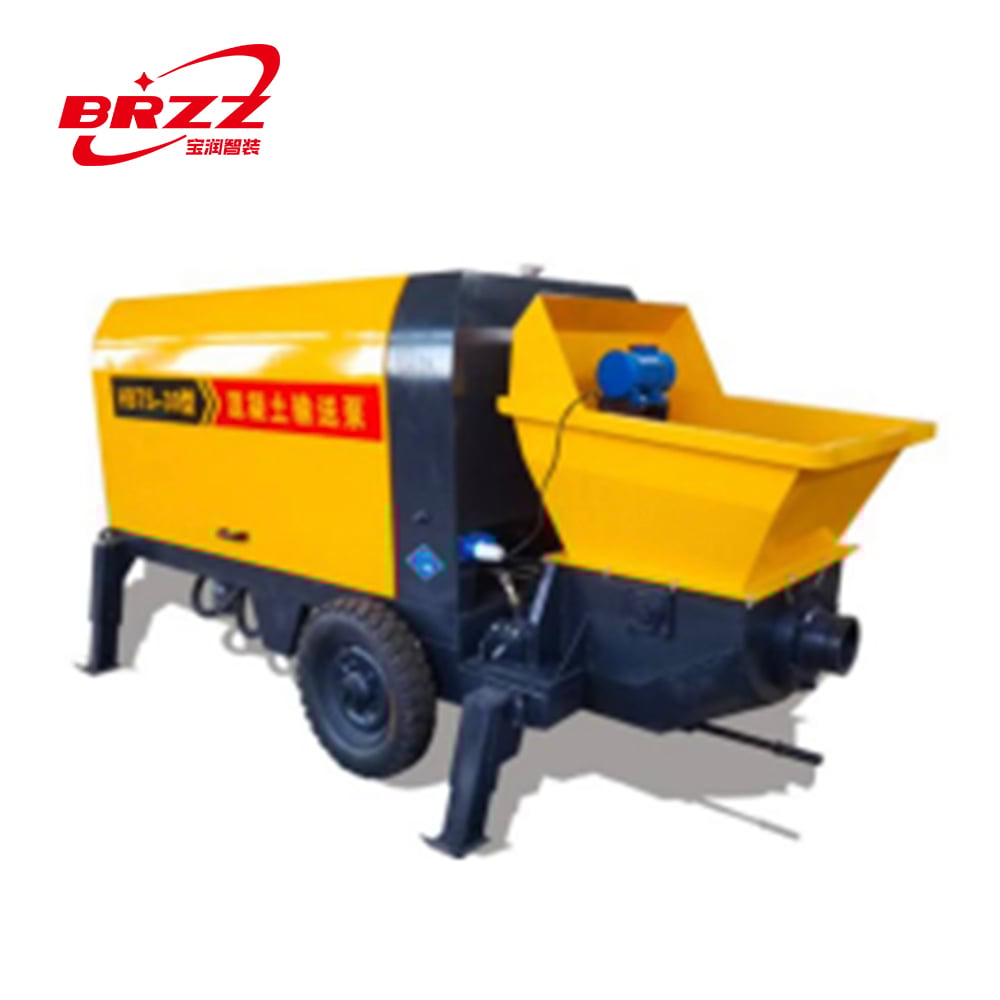

| Concrete pumpLG-15 |
Vertical conveying distance: 20m Diameter ofconverying tube: 80mm Horizontal conveying distance: 50m Motor 15KW Capacity of conveying: 6-8m3/h Conveying Particle size: 0.5-2cm Weight: 400KGS Oil tank. 50L |
 |

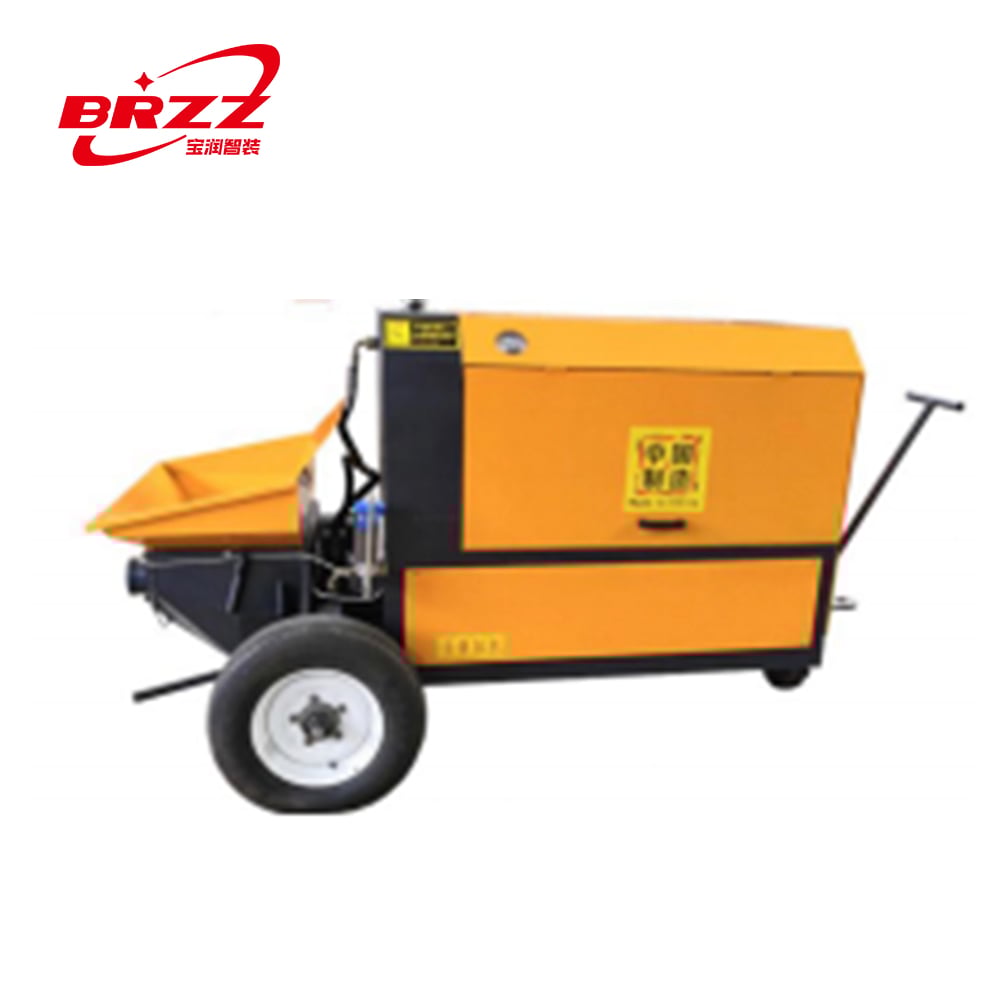

| Concrete pumpLG-22 |
0.5-2CM Particle conveying distance: Horizontal70m Vertical 40M 1 -3CM Particle conveying distance: Horizonta50m Vertical 20M conveying distance: 50m Motor: 22KW Weight: 1100KGS |
 |

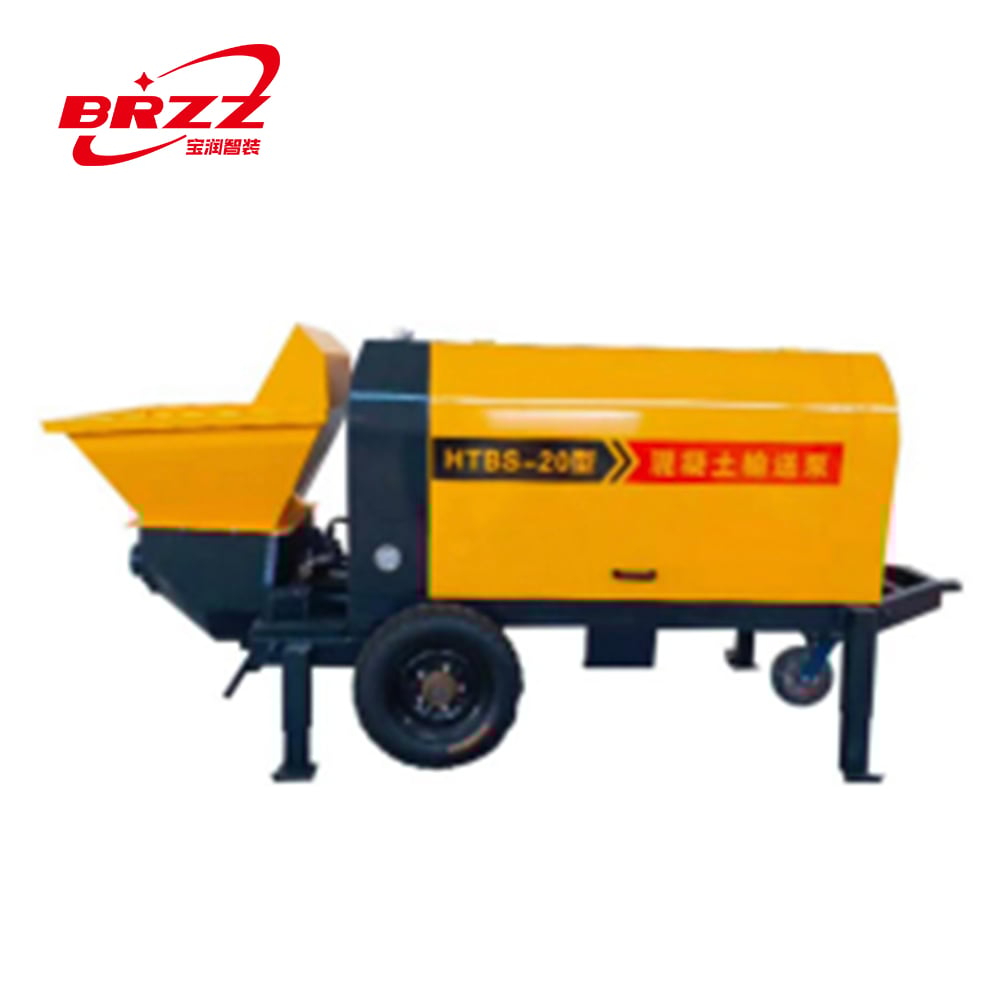

| Concrete pumpLG-20 |
0.5-1CM conveying distance: Horizontal 150mVertical 80M Weight: 1700KGS Size: 3400*1400*1500mm |
 |
| Concrete pumpLG-30 | 0.5-1CM conveying distance: Horizontal 200mVertical 100M 1-2CM conveying distance: Horizontal 120mVertical 70M 1-3CM conveying distance: Horizontal 80mVertical 40M Diameter of converying tube: 80mm/100mmMotor: 37KW Capacity of conveying: 25-30m//hWeight: 2500KGS Size: 4100*1600*1600mm |
 |

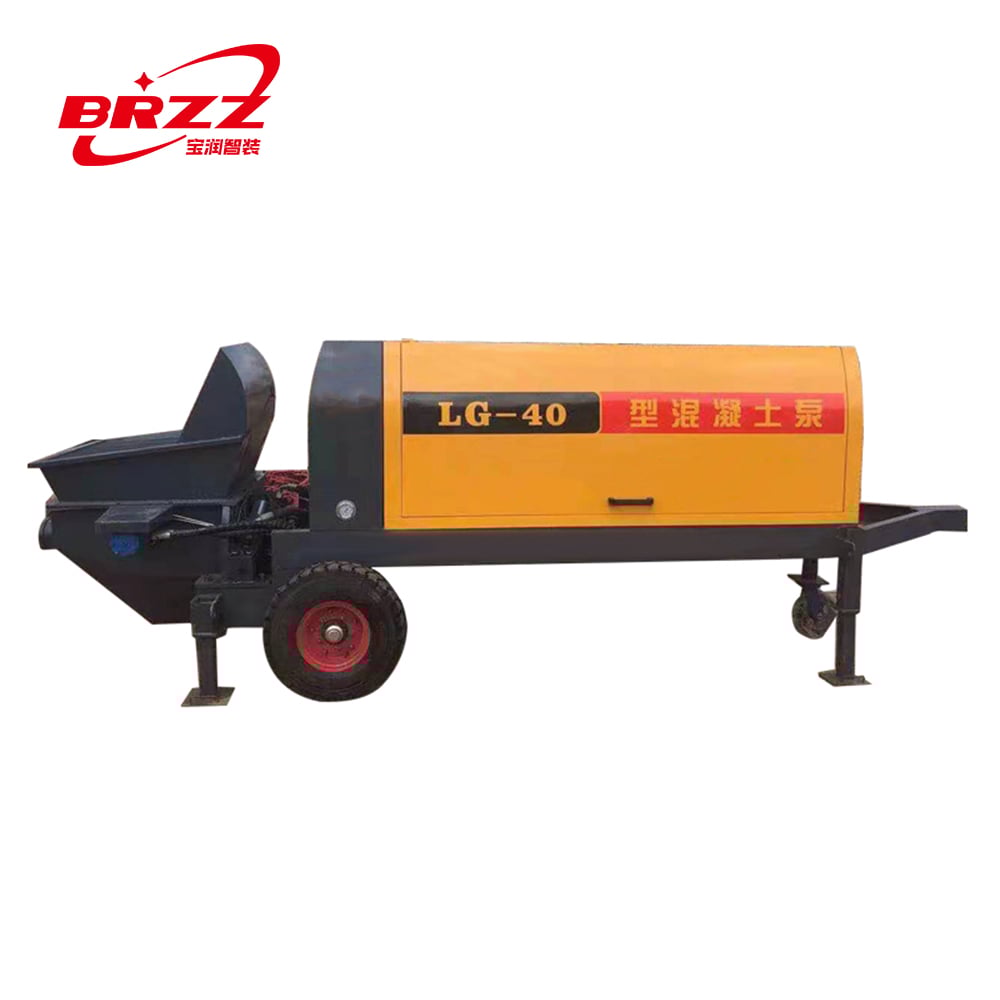

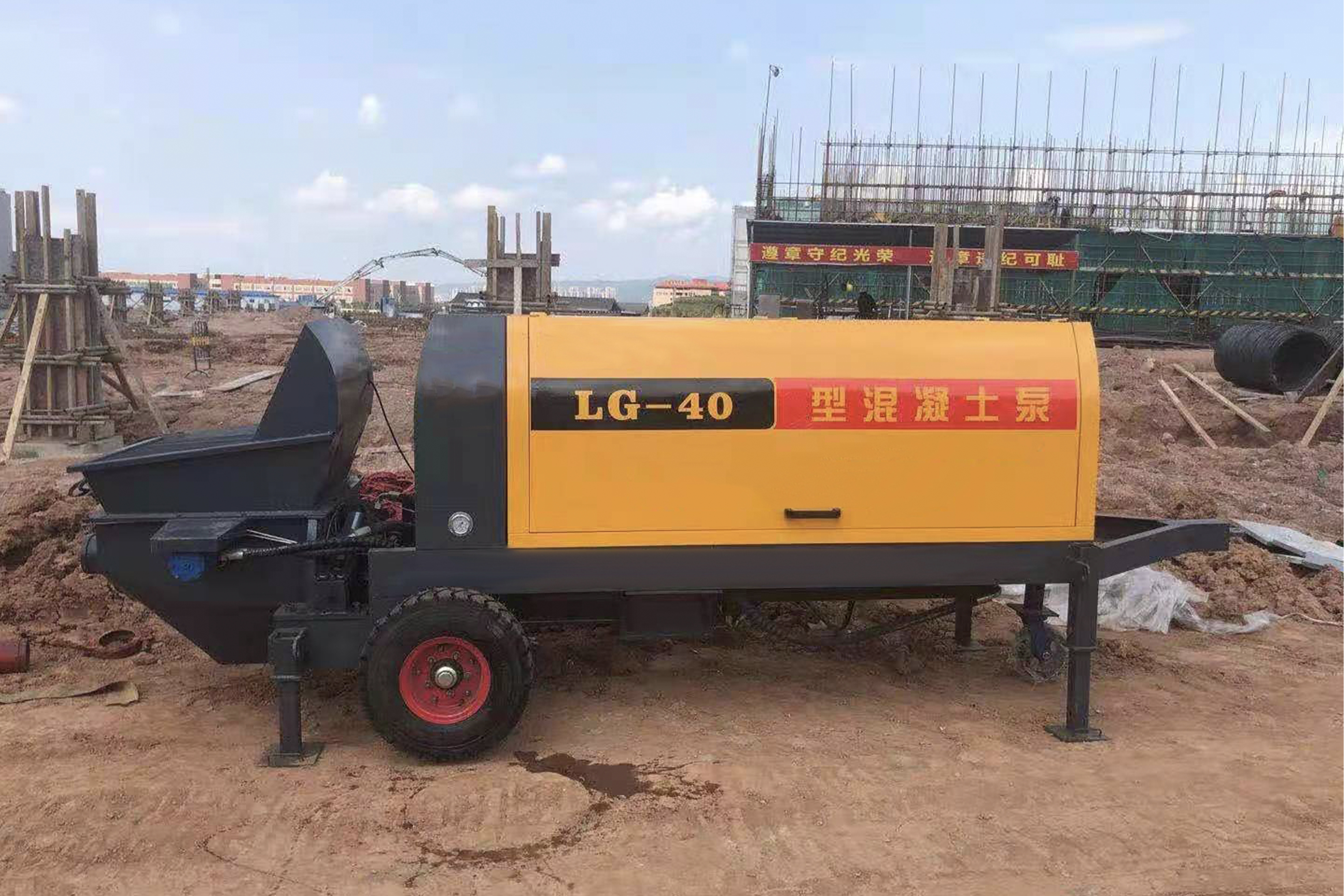

| Concrete pumpLG-40 | 1-2CM conveying distance: Horizontal 300mVertical 100M 1-3CM conveying distance: Horizontal 120mVertical 50M 2-4CM conveying distance: Horizontal 80m/ertical 30M Diameter of converying tube: 80mm/100mmMotor: 45KW Capacity of conveying: 30-40m//h Weight: 2500KGS Size: 4100*1600*1600mm |
 |

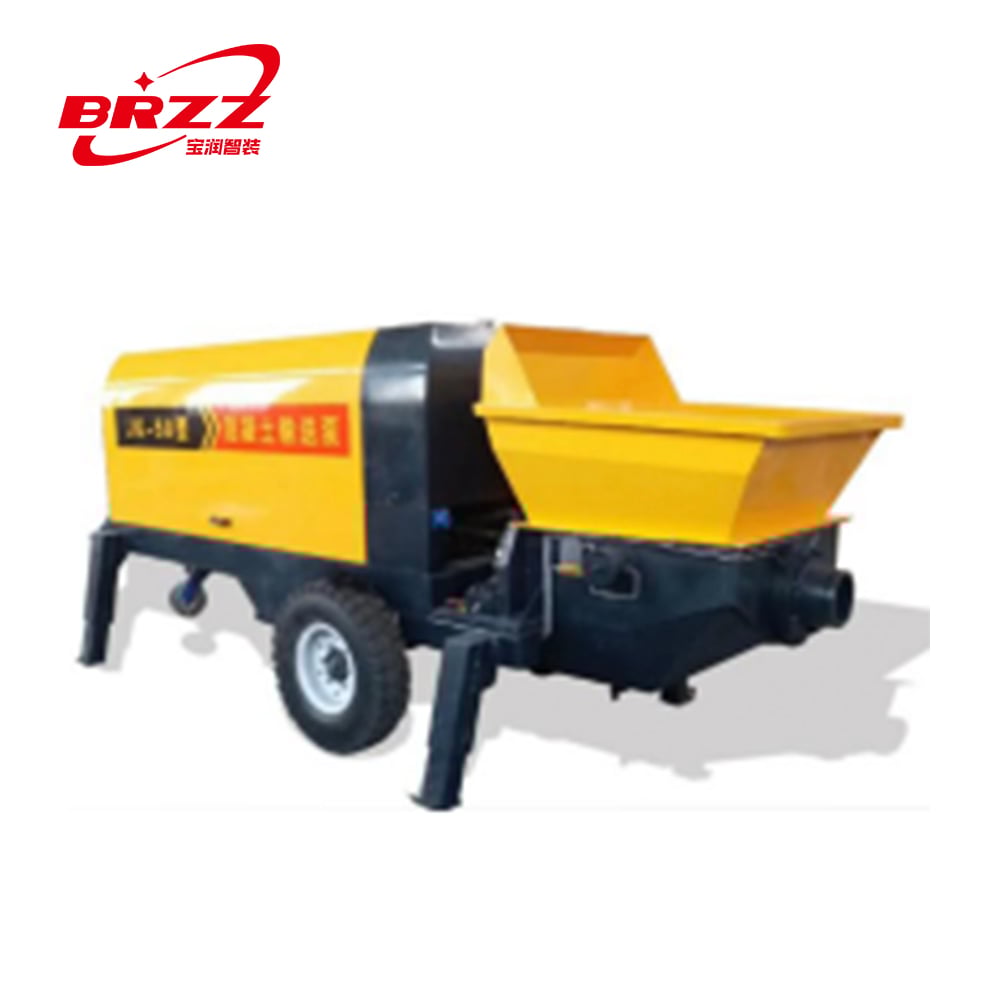

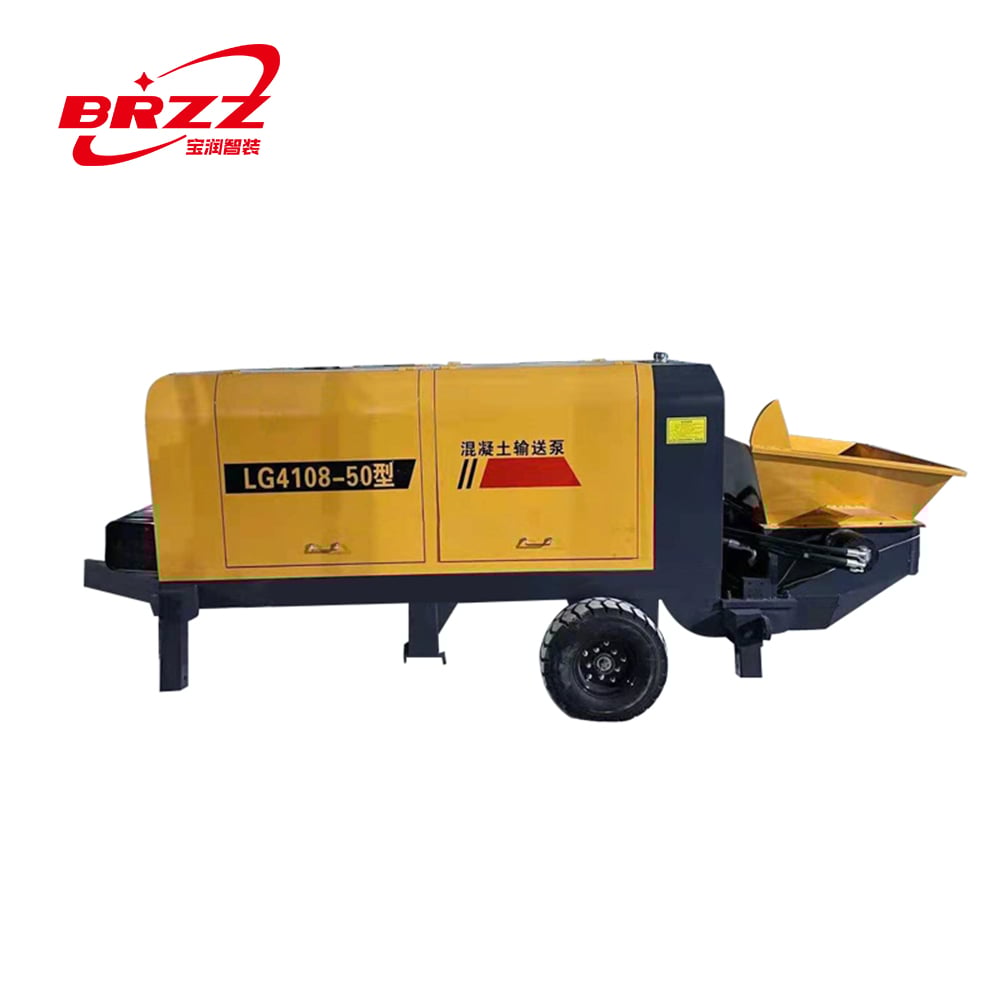

| Concrete pumpLG-50 | 1-2CM conveying distance: Horizontal 350mVertical 150M 1-3CM conveying distance: Horizontal 150mVertical 80M 2-4CM conveying distance: Horizontal 110m Vertical 50M Diameter of converying tube: 80mm/100mmMotor: 55KW Capacity of conveying: 30-40m3/h Weight: 2800KGS Size: 4200*1700*1700mm |
 |
