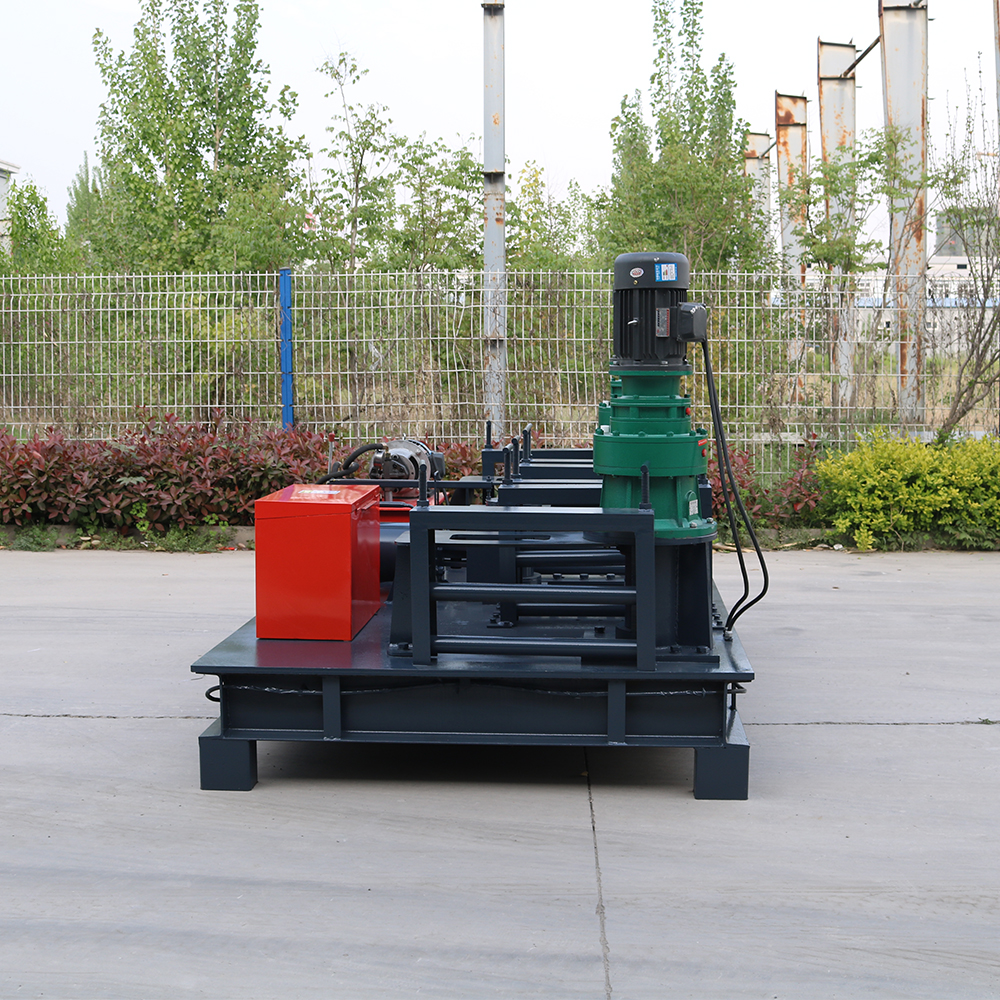

H beam bending machine

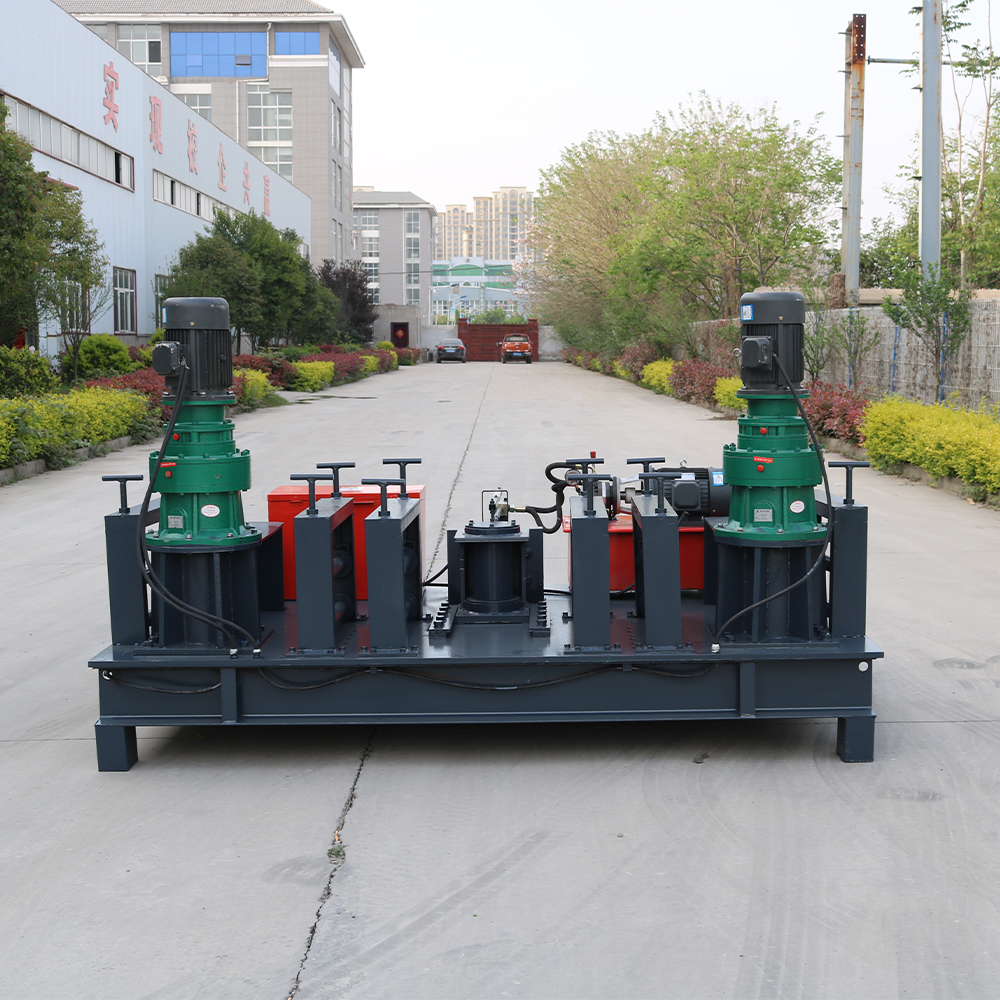

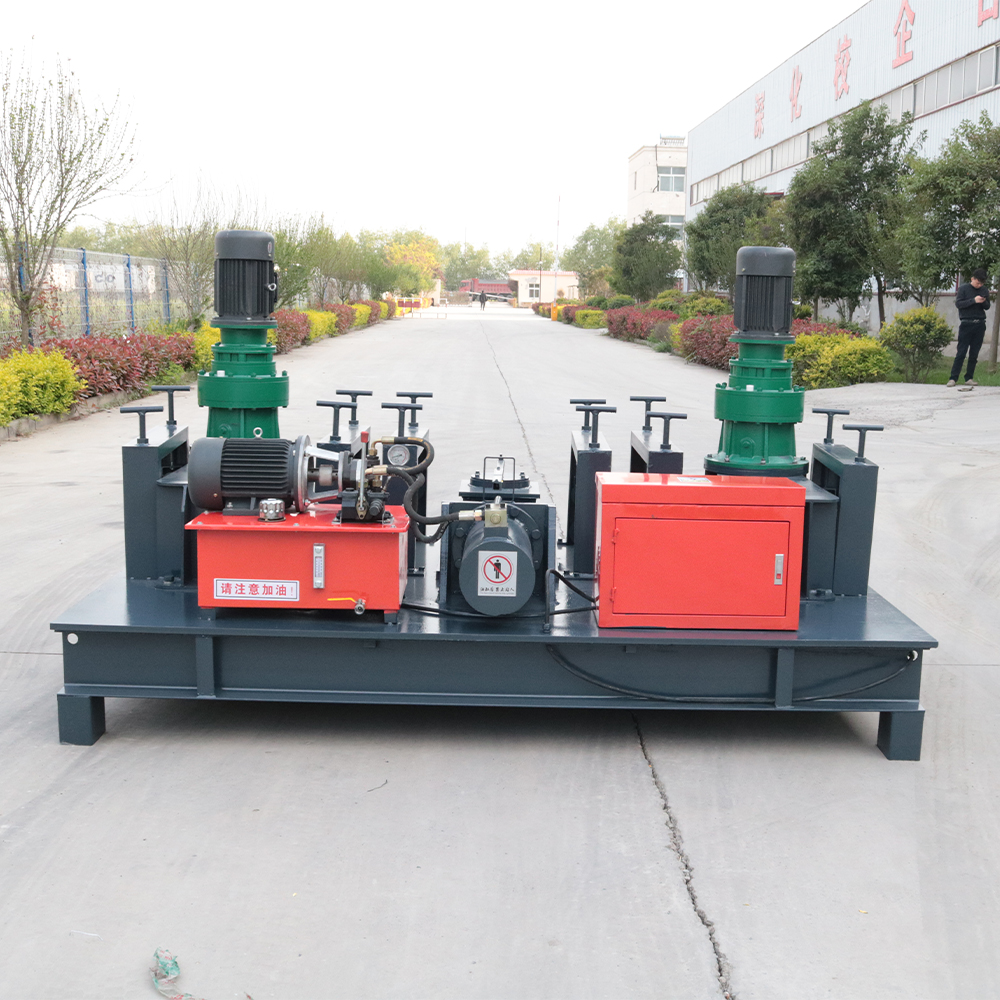

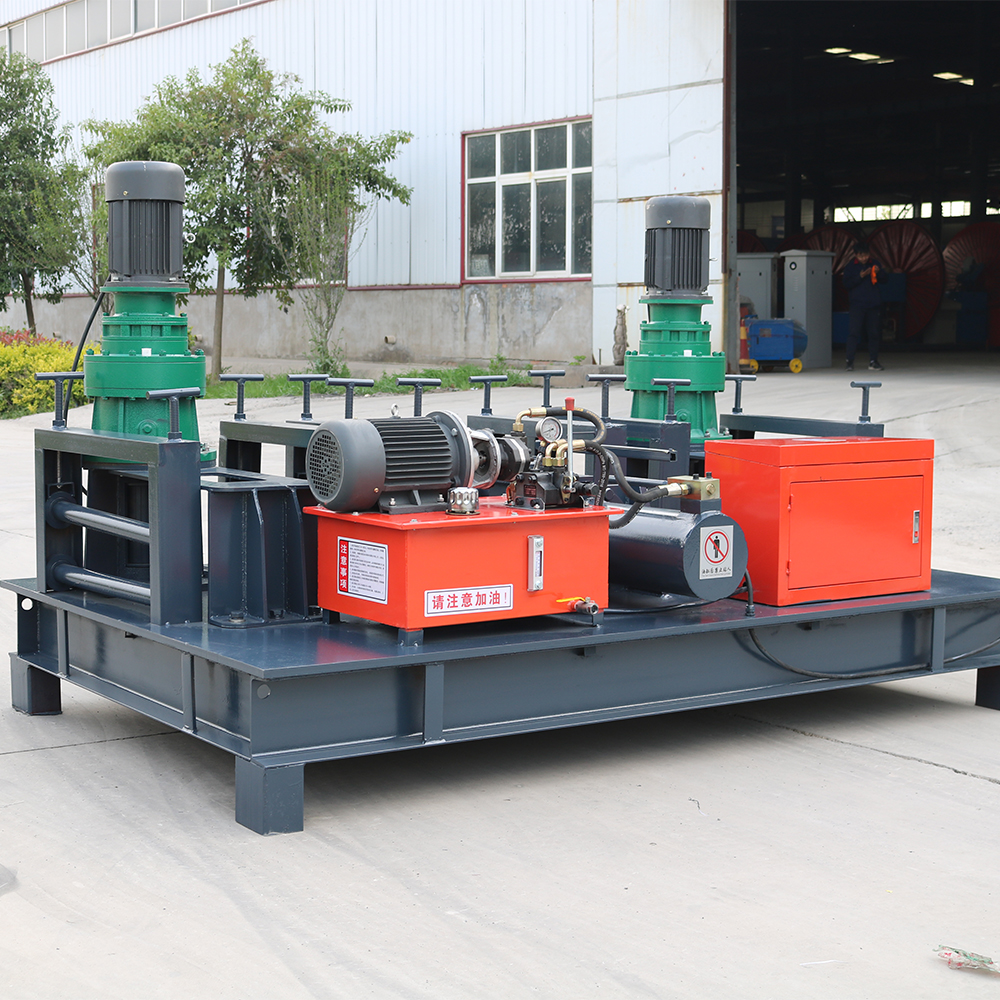

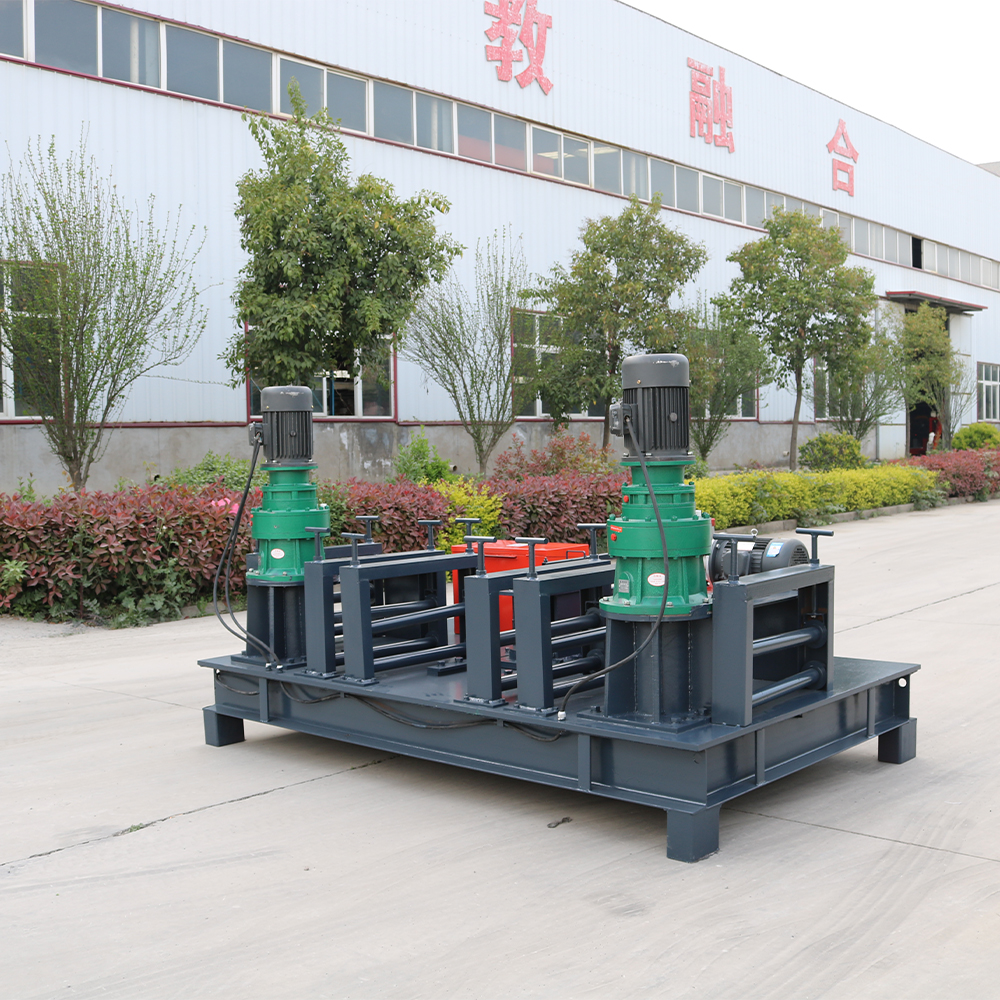

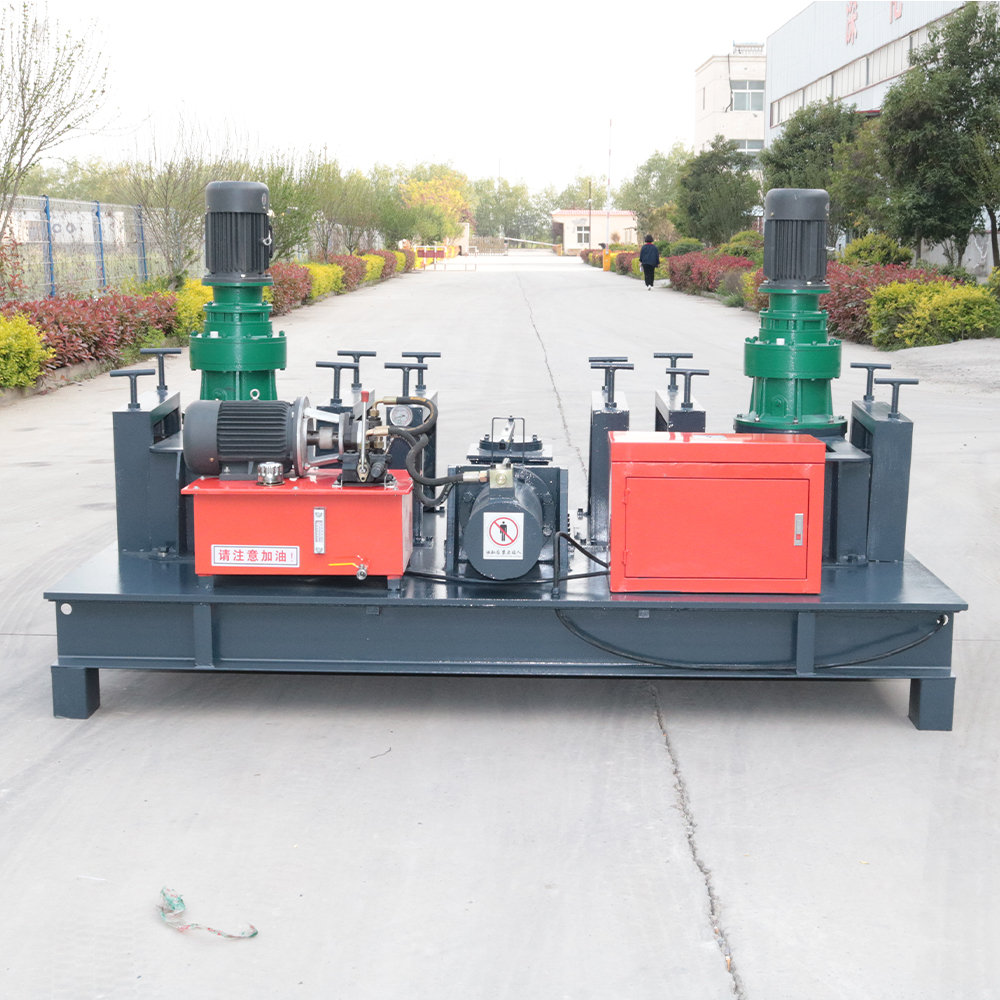

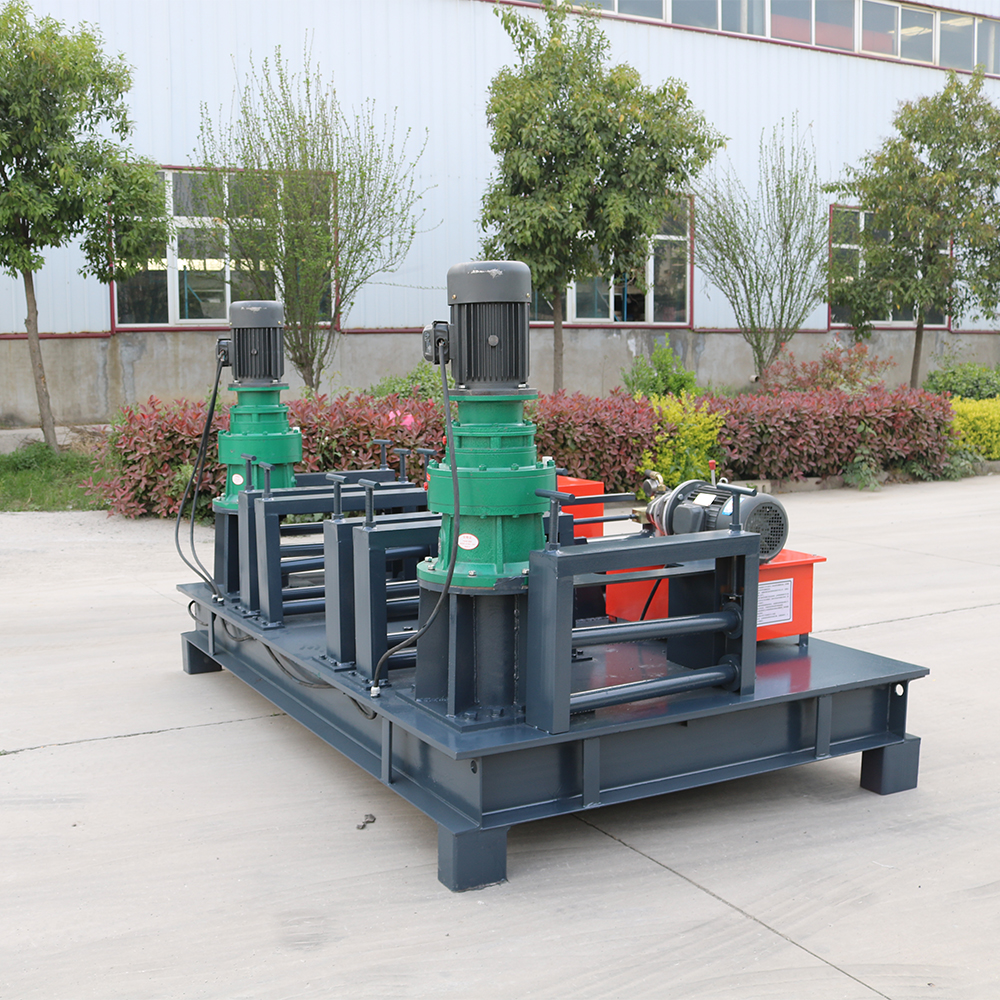

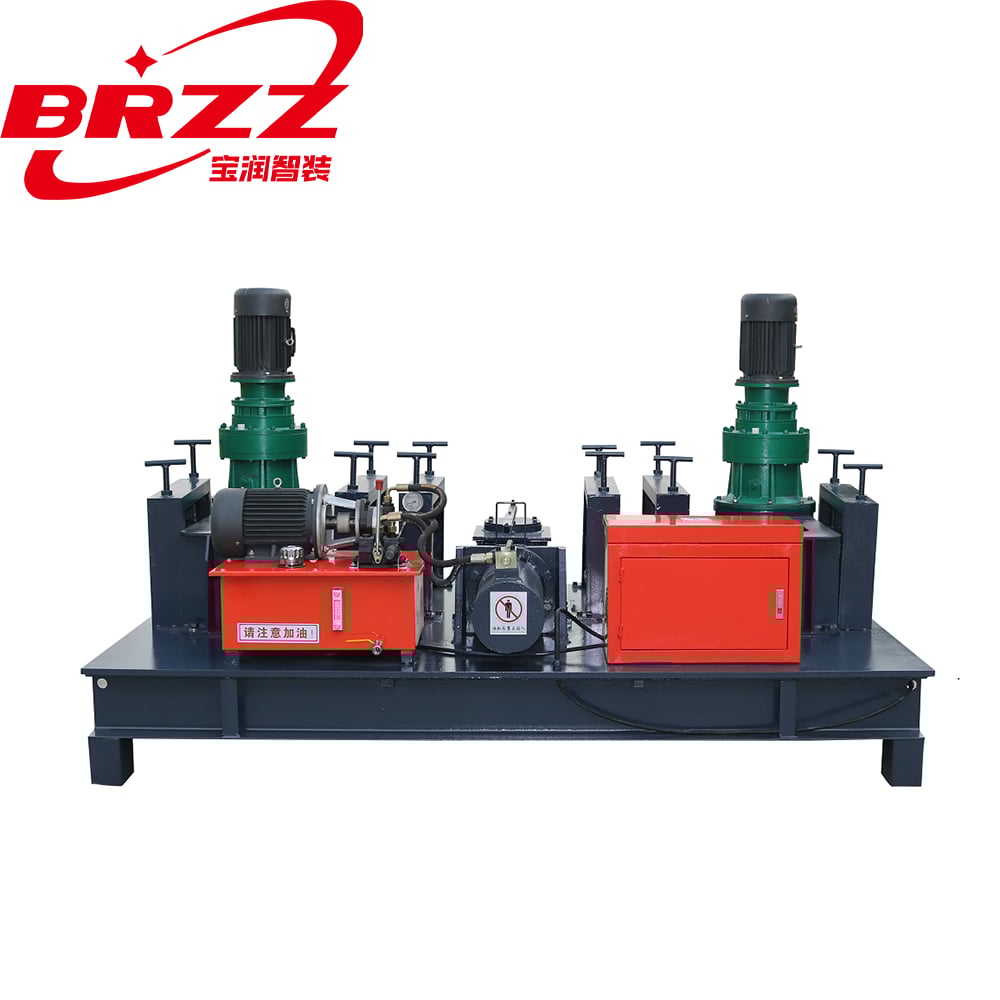

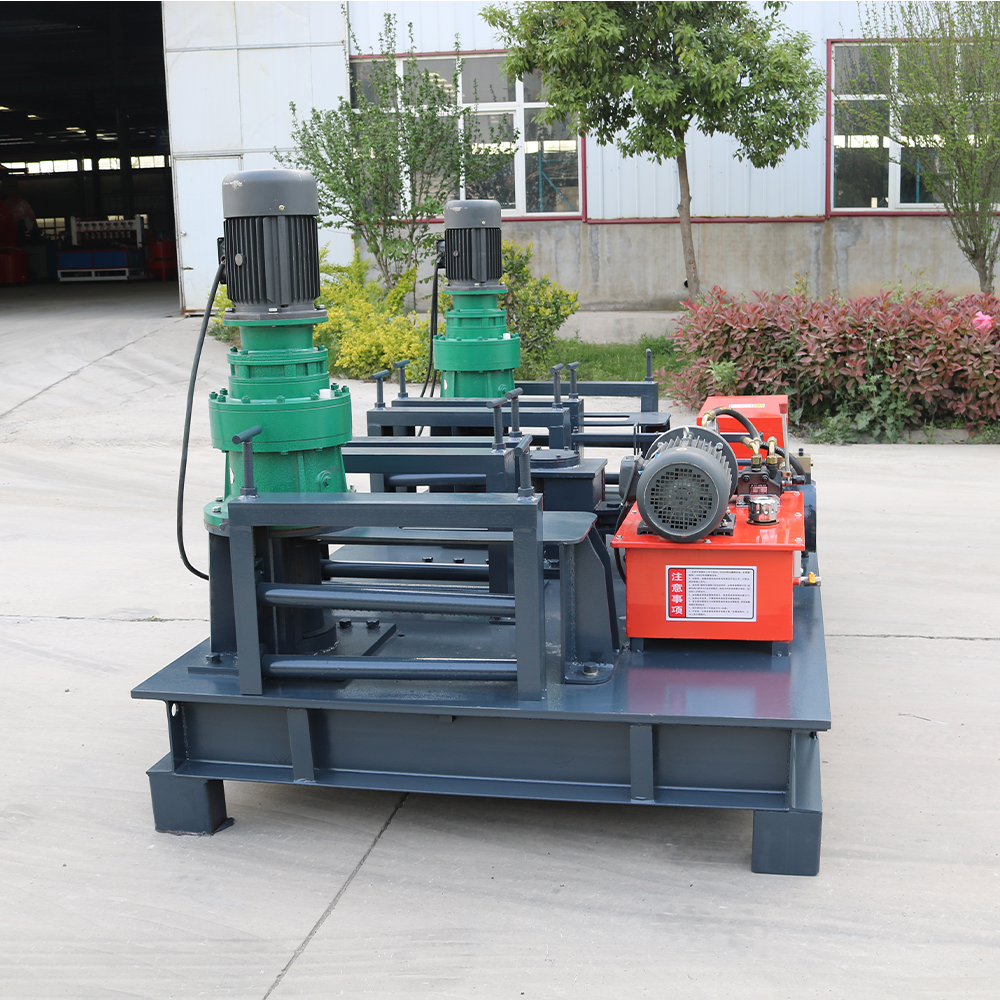

Arch bending machine (cold bending machine) BRWGJ250
Features and uses of I-beam arch bending machine
WGJ250 hydraulic cold bending machine adopts hydraulic system, which has the characteristics of stable transmission, high pressure, etc., can accurately position, and greatly improves the processing accuracy of tunnel I-beam. WGJ250 hydraulic cold bending machine is widely used in the bending of I-beam, channel steel and section steel in road tunnels, railway tunnels, subway tunnels, water conservancy and hydropower diversion culverts, natural gas pipelines, communication pipelines, underground passages and other projects in my country.

The main technical parameters
Profile specification 14-25 I-beam
Small bending radius over 2 meters
Cylinder push and pull speed 8-15 mm per second
Driving wheel speed 7-10 revolutions per minute
Hydraulic system power 25mpa (250kg)
Total power 11.9kw
Machine quality 2380kg
