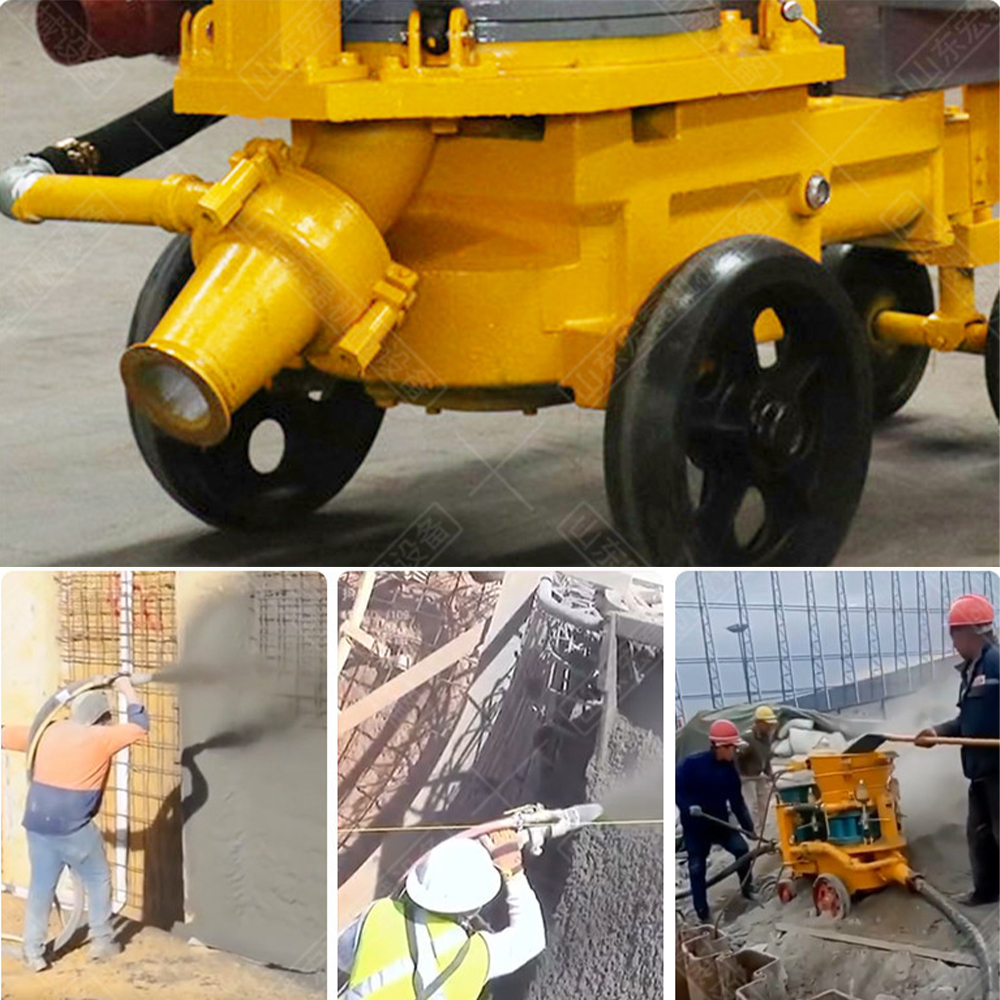

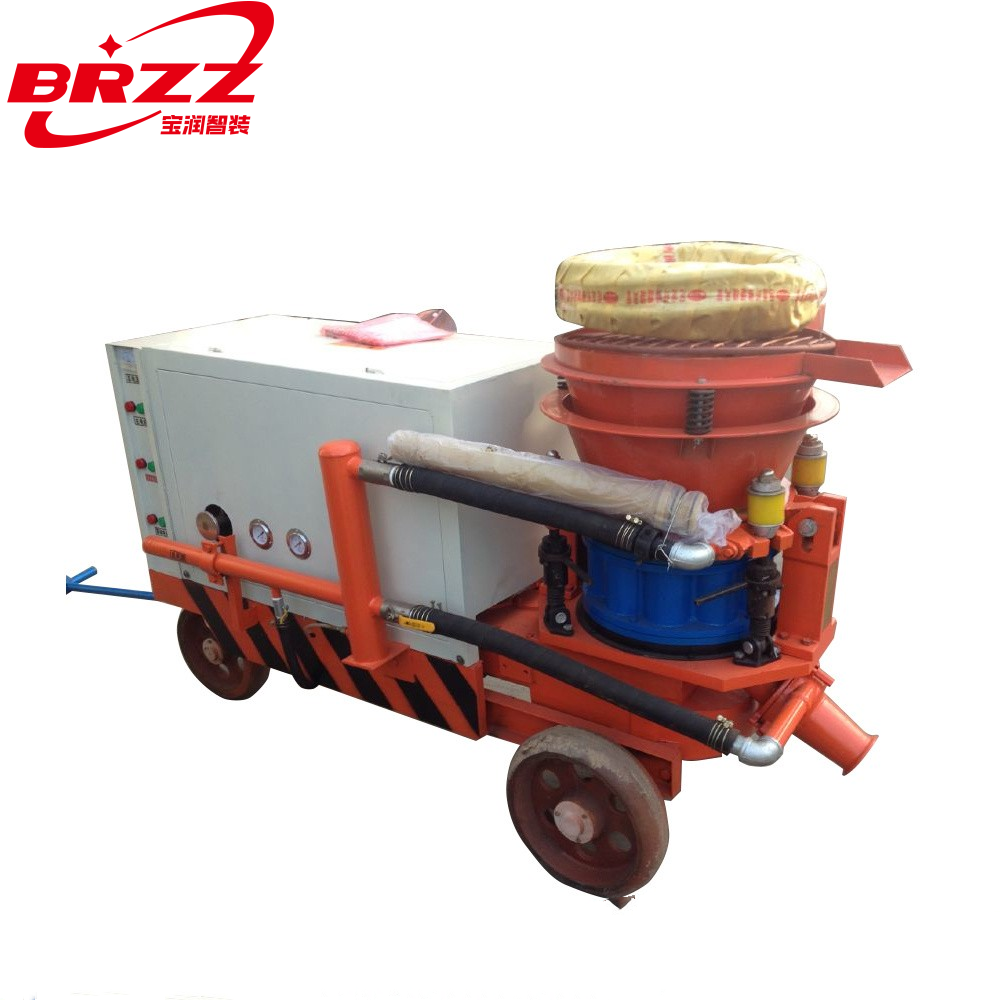

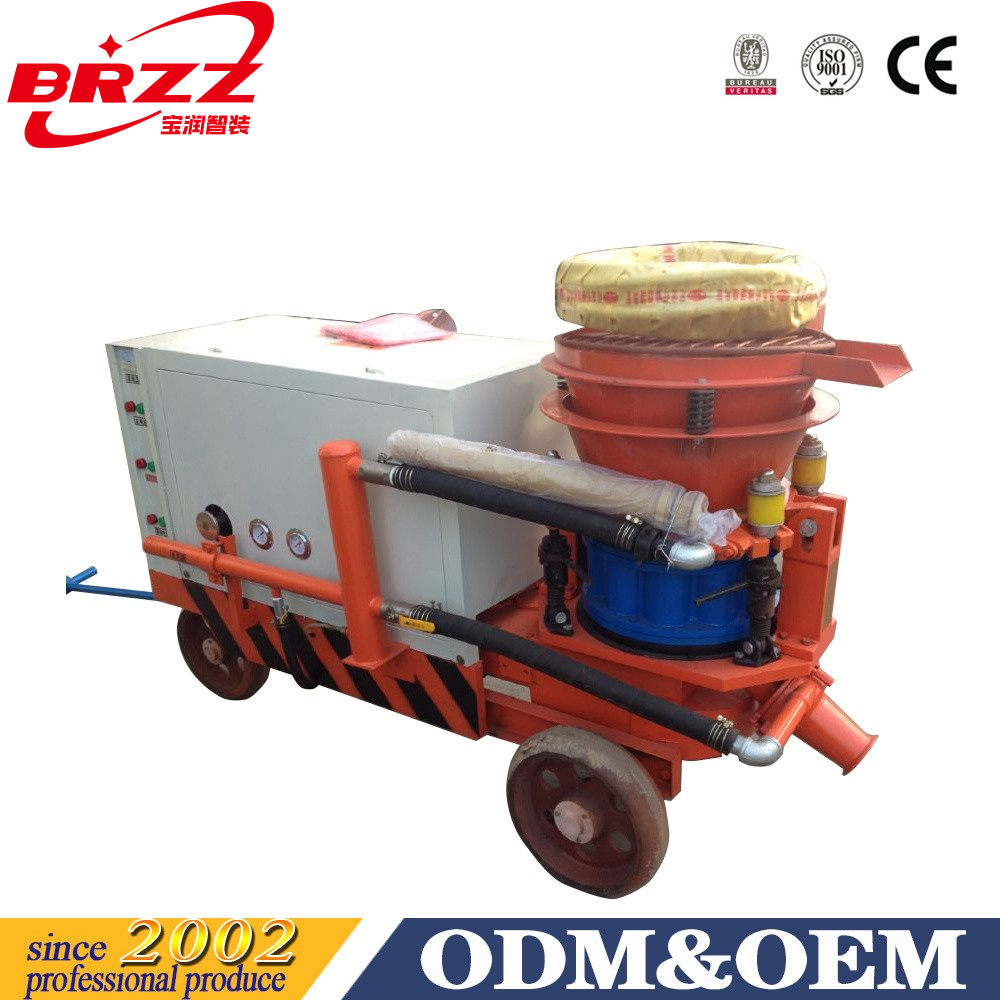

Convenient concrete shotcrete machine

Type

PZ-5

PZ-6

PZ-7

ZSP-7

Production Capacity

5m³/hour

6m³/hour

7m³/hour

7m³/hour

Concrete Mixture Ratio

1:4-5

1:4-5

1:4-5

1:4-5

Water Cement Ratio

≤0.4

≤0.4

≤0.4

≤0.6

Maximum Conveying Distance

200m

200m

200m

300mm

Maximum Aggregate Size

φ20mm

φ20mm

φ20mm

φ20mm

Nozzle Diameter

φ51mm

φ51mm

φ64mm

φ64mm

Operation Wind Pressure

0.3-0.5 MPa

0.3-0.5 MPa

0.3-0.5 MPa

0.3-0.5 MPa

Air Consumption

7-8m³/min

7-8m³/min

10m³/min

10-12 m³/min

Filling Height

1.1m

1.1m

1.2m

1.2m

Power of Motor

5.5KW

5.5KW

7.5KW

7.5KW

Voltage

380V

380V

380V

380V

Overall Dimensions

1300*750* 1180mm

1300*750* 1180mm

1520*750* 1200mm

2100*900* 1200mm

Total Weight

600 kg

600kg

850kg

1000kg
