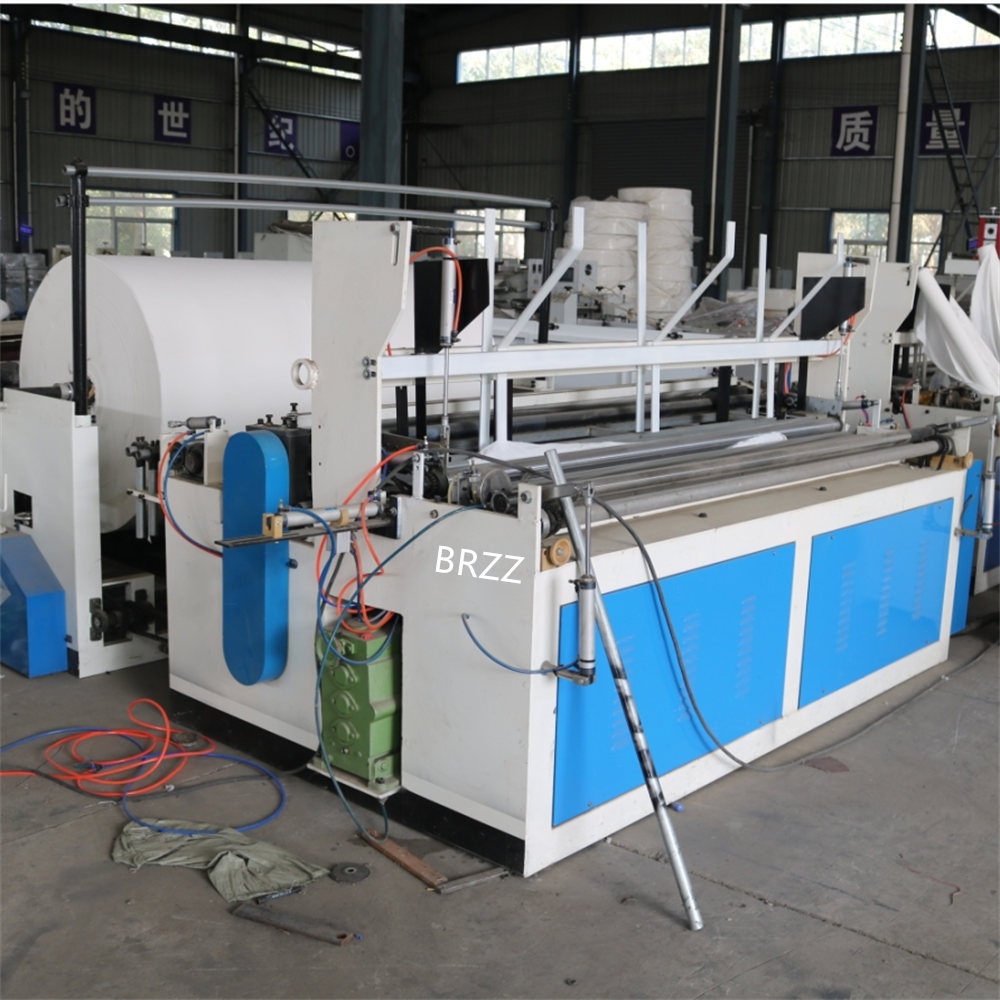

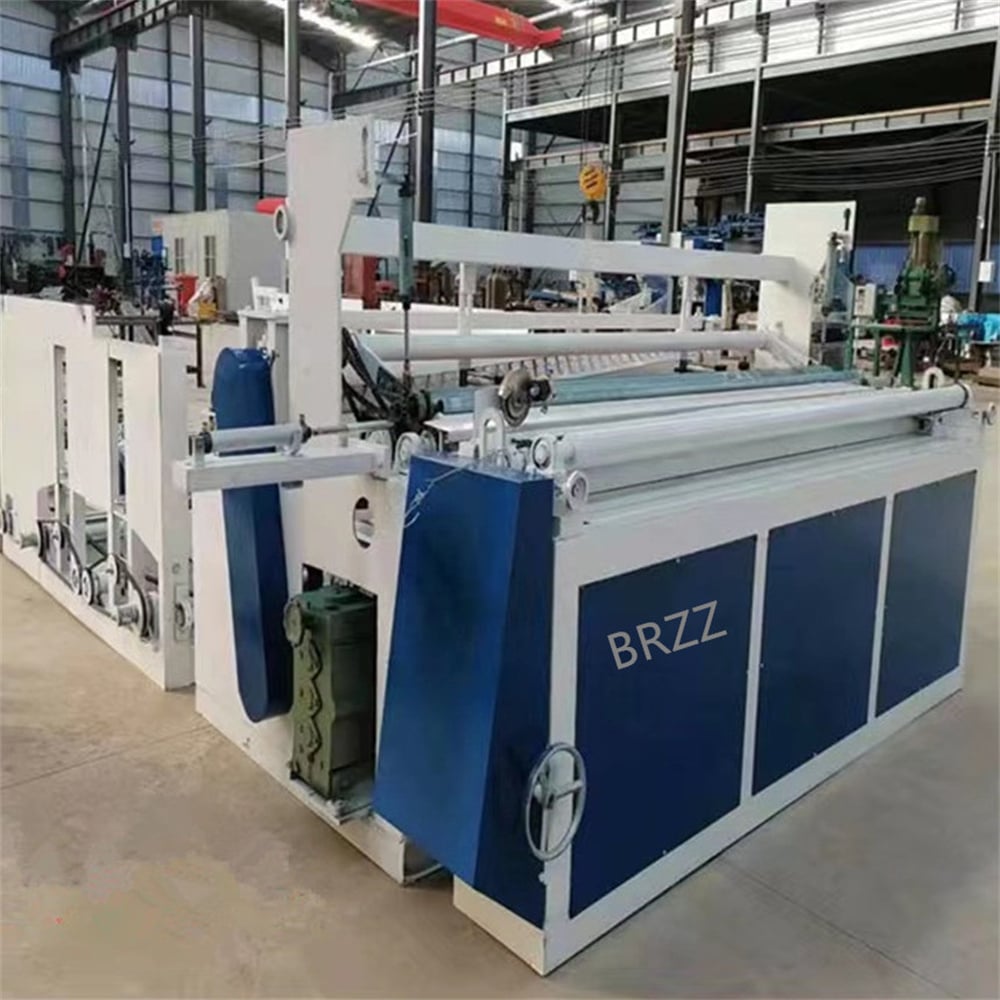

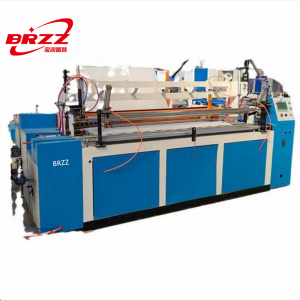

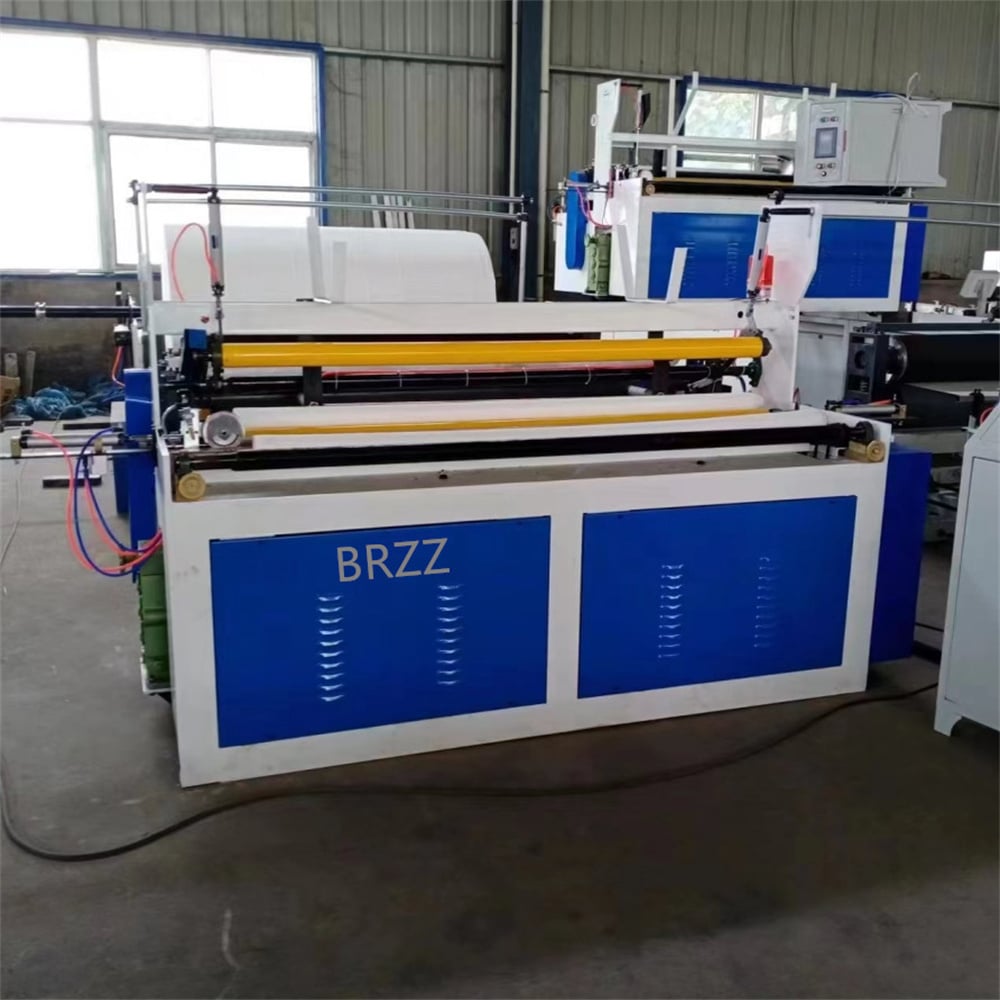

    Fully automatic paper rewinding machine

    Name Fully automatic paper rewinding machine
    Paper Width ≤2200mm
    Finished Diameter φ50~180mm(Adjustable Width)
    Finish Paper Core φ30~55mm
    Base Diameter ≤1100mm Standard（Other size are available）
    Jumbo Roll Core Diameter 76mm Standard（Other size are available）
    Process Capability 150~280M / Minute
    Parameter Setting PLC computer operating system interface
    Back Stand Standard three-layer synchronous transmission
    Perforation Pitch 150~300mm
    Pneumatic System The 3-horse air compressor， has a minimum pressure of 5kg/cm2Pa
    Power 5.5KW
    Dimensions 6500mm*3650mm*1750mm
    Weight 2800KG
